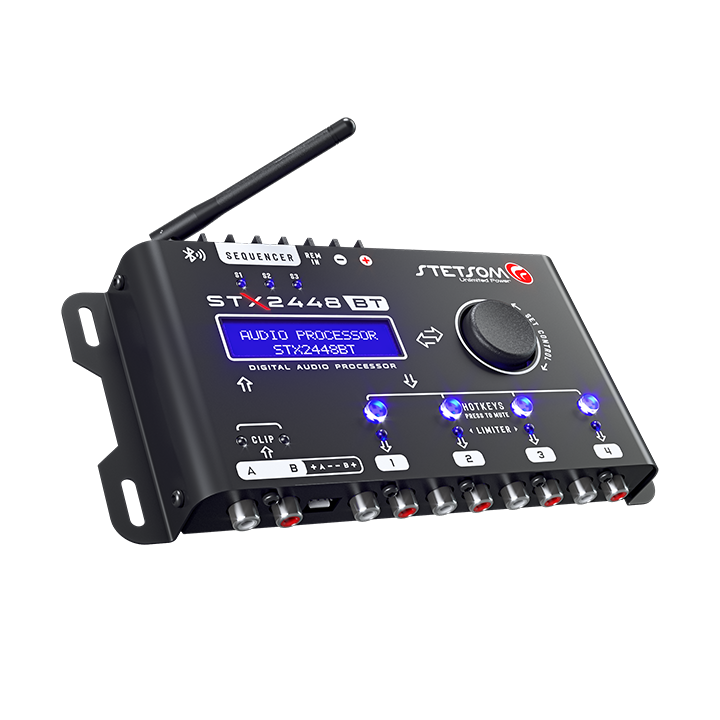

STX2448BT
DESCRIPTION
Learn more about the product’s features and specifications in the user manual:
The new STX2448BT is designed to take your audio experience to the next level, bringing a modern upgrade to the well-known SXT2448.
Now featuring Bluetooth technology and an exclusive app for Android and iOS, it offers full control of the processor directly from your smartphone — no need for physical access to the device. Its new DSP delivers even more professional features, allowing for highly precise and customized audio adjustments. Enjoy greater freedom, precision, and performance for any car audio or home audio project.
DOWNLOAD THE APP
Processor Features:
Audio adjustments directly on the processor or via the app;
RCA & High-Level (wire) audio inputs;
Input Graphic Equalizer;
Output Parametric Equalizers;
Flexible routing between inputs and outputs;
High-precision Crossover with Butterworth, Linkwitz-Riley, and Bessel filters;
High-precision Delay adjustment;
Phase Inversion;
Limiter with Threshold, Attack, Hold, and Release controls;
Master Volume, Gain, and Mute for each output channel;
Automatic Save and Load to store and recall audio settings;
Security Password to lock parameter modifications;
Frequency Generator with sweep function;
Integrated Sequencer for remote activation with adjustable timing.
TECHNICAL SPECIFICATIONS
CHARACTERISTICS | STX2448BT |
---|---|
Number of processors (DSPs) | 1 |
Input Channels | 2 (IN A / IN B) |
Output Channels | 4 (OUT1, 2, 3, 4) |
Output Gain: | -45dB ~+15dB |
Master Level | 0% ~ 100% |
Graphic Equalizer | 10 Bandas (Band) |
Parametric Equalizer Input | 2 Bandas (Band) |
Parametric Equalizer Output | 2 por saída / 2 per audio output |
Routing | A / B / A+B |
Crossover Bessel (dB/8ª) | 12/18/24/30/36/42/48 dB/8ª |
Crossover Butterworth (dB/8ª) | 12/18/24/30/36/42/48 dB/8ª |
Crossover Linkwitz-Riley (dB/8ª) | 12/18/24/30/36/42/48 dB/8ª |
Limiter | Threshold, Attack e Release |
Automatic Attack/Release | ✔ |
Manual Attack/Release | ✔ |
Delay | 0ms ~ 8ms (275cm) |
Frequency Generator | 10Hz ~ 22KHz + Gain |
Frequency scan | ✔ |
Display | LCD 16x2 |
Screen saver | ✔ |
Security Password | ✔ |
Frequency Response | 10Hz ~22,5KHz @ -3dB |
Latency | 1,08ms |
Signal to Noise | >90dB |
THD | <0,01% |
Channel Separation | >80dB |
Maximum Input Voltage | RCA: 2V RMS / HIGH: 13V RMS |
Maximum Output Voltage | 2V RMS |
Supply Voltage | 9V ~ 16V DC |
Dimensions (H x W x D) mm | 36 x 117 x 223,5 mm |
Weight Kg | 0.5 Kg |
